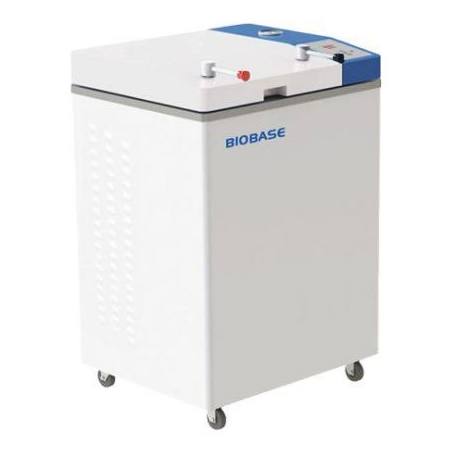

Vertical Autoclave Top Loading 50L
Lead Time: 4-6 Weeks
The Special Sterilizers are manufactured upon an order.
Technical Features:
1. Complete protection system.
2. Flip-open door structure with spring booster, easy to open.
3. LED displays inner temperature, time and error codes.
4. Automatic exhausting steam function.
5. Reliable mechanical safety interlock feature.
6. External material: Cold rolled steel with anti-bacteria powder coating.
7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
8. Door cover is wrapped completely, to prevent scald effectively.
9. Radial self-expanding silicone rubber seals with high effect and long using life.
10. Optional printer for recording sterilization data.
Safety Features:
1. Over pressure, safety valve can automatically open to release pressure.
2. Over temperature, the system will stop heating automatically and start alarm.
4. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.
5. Over current, over voltage or electric leakage protection apparatus-air switch.
Vertical Autoclave Top Loading 50L
| Model | BKQ-Z50I |
| Capacity | 50L |
| Chamber size(Φ*L) | 385*515 mm |
| Chamber material | Polished SUS304 medical stainless steel |
| Max pressure | 0.3MPa |
| Rated working pressure | 0.22MPa |
| Max temperature | 150ºC |
| Working temp range | 105~134ºC |
| Temp. accuracy | ±0.1ºC |
| Timing range | 0-999min |
| Dynamic pulse exhaust time | 0~9times |
| Water requirement | Distilled water or demineralized water |
| Standard Accessories | Stainless steel basket*1pc |
| Power consumption | 3KW |
| Power supply | 220V, 50/60Hz |
| Externalsize(W*D*H)mm | 610*645*850 |
| Packing Size(mm) | 780*690*1190 |
| Gross weight | 113 kg |
Vertical Autoclave Top Loading 50L
