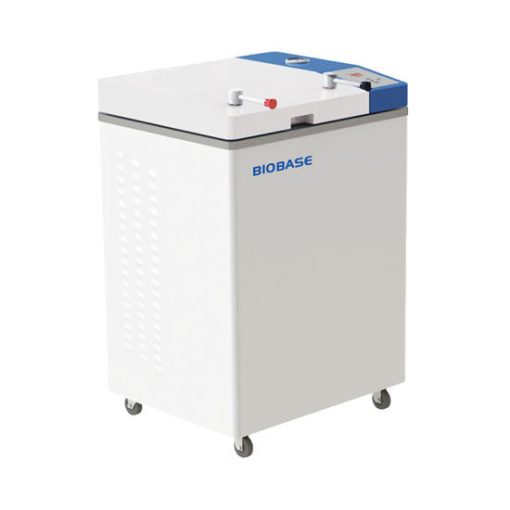

Vertical Autoclave Model BKQ-Z50I
Autoclave Model BKQ-Z50I
Technical Features:
1. Complete protection system.
2. Flip-open door structure with spring booster, easy to open.
3. LED displays inner temperature, time and error codes.
4. Automatic exhausting steam function.
5. Reliable mechanical safety interlock feature.
6. External material: Cold rolled steel with anti-bacteria powder coating.
7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.
8. Door cover is wrapped completely, to prevent scald effectively.
9. Radial self-expanding silicone rubber seals with high effect and long using life.
10. Optional printer for recording sterilization data.
Autoclave Model BKQ-Z50I
Safety Features:
1. Over pressure, safety valve can automatically open to release pressure.
2. Over temperature, the system will stop heating automatically and start alarm.
4. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.
5. Over current, over voltage or electric leakage protection apparatus-air switch.
Technical parameters:
Standard Accessories : Stainless steel basket*1pc
Power consumption : 3KW
Capacity : 50L
Chamber size : 385*515mm
Gross weight : 108 kg
Packing Size(mm) : 770*670*1060
Externalsize(W*D*H)mm : 610*645*850
Chamber size(φ*H) : 385*515mm
| Chamber material | Polished SUS304 medical stainless steel | |||
| Max pressure | 0.3MPa | |||
| Rated working pressure | 0.22MPa | |||
| Max temperature | 150ºC | |||
| Working temp range | 105~134ºC | |||
| Temp. accuracy | ±0.1ºC | |||
| Timing range | 0-999min | |||
| Dynamic pulse exhaust time | 0~9times | |||
