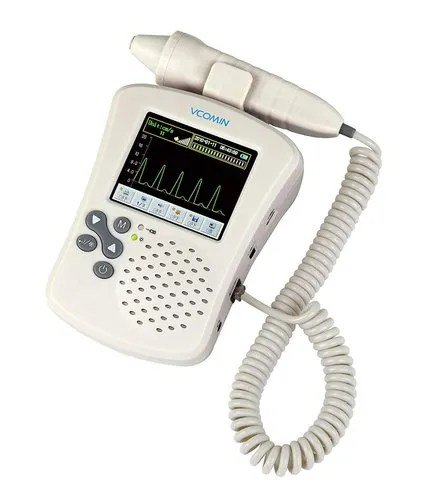

Model: Vascular Doppler VD-320. Features: Sensitive special purpose probe, Display strength cursor, Both of AC and DC battery, Auto power off, Freeze display content on LCD, USB to transmit the data to computer, Output with loudspeaker and earphone. Configuration: Main body, 8MHz probe, Ni-Mh battery, Adaptor.
box dimensions 18x21x8 0.5kgs
• Model: Vascular Doppler VD-320
• Features: [‘Sensitive special purpose probe’, ‘Display strength cursor’, ‘Both of AC and DC battery’, ‘Auto power off’, ‘Freeze display content on LCD’, ‘USB to transmit the data to computer’, ‘Output with loudspeaker and earphone’]
• Configuration: [‘Main body’, ‘8MHz probe’, ‘Ni-Mh battery’, ‘Adaptor’]
• Physical Characteristic: {‘Size’: ‘135mm ×100mm ×65 mm’, ‘Weight’: ‘About 650g (including battery)’}
• Environment: {‘Working’: {‘Temperature’: ‘+5~ +40 °C’, ‘Humidity’: ’25-80%’, ‘Atmospheric Pressure’: ’70 ~ 106kPa’}, ‘Transport and Storage’: {‘Temperature’: ‘-10~ +55’, ‘Humidity’: ‘<93%', 'Atmospheric Pressure': '50~106kPa'}}
• Display: 65mm×50mm LCD
• Performance: {'Audio Output Power': '0.5W', 'Probe Frequency': '5MHz:10% and 8MHz+10%', 'Transducer Effective Radiating Area': '32mm?‡15% for 5MHz probe, 14mm?15% for 8MHz probe', 'Vascular Speed': '0-40cm/s', 'Vascular Frequency': '0-2KHz'}
• Battery Type: 7.4V Li-ion rechargeable battery
• Recommended Coupling Medium: {'Stimulation to Skin': 'No', 'Total Germ Quantity': '<1000units/g Staphylococcus aureus: No', 'Acoustic Velocity': '1520-1620m/s', 'Acoustic Impedance': '1.5-1.7×106 Pa.s/m', 'Acoustic Attenuation': '<0.05dB/(cm.MHZ)', 'Viscosity': '>15Pa.S’}
Safety Standard: IC 60601-1:2005. Classification: Anti-electroshock Degree: Type BF equipment L, Liquid Proof Degree:IPX1, Ordinary equipment (sealed equipment without liquid proof), Degree of Safety in Presence of Flammable Gases: Equipment not suitable for use in presence of flammable gases. Working System: Continuous running equipment. EMC: Group I Class B.
• Sensitive special purpose probe
• Display strength cursor
• Both of AC and DC battery
• Auto power off
• Freeze display content on LCD
• USB to transmit the data to computer
• Output with loudspeaker and earphone
