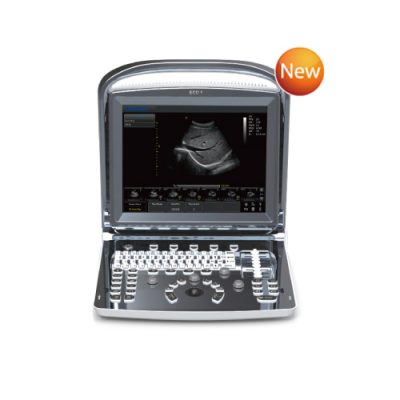

CHISON ECO 1

CHISON ECO 1

CHISON ECO 1

Some features of ECO-1 are listed below.

• 12 inch rotatable LED monitor (0 – 30 deg) adapt to different viewing angles
• Ultra light and compact design, ideal for mobile services
• Applications: Urology, Vascular, Small Parts, Pediatrics, Cardiology
• Display Modes: B, B/B, 4B, M, B/M
• Gray Scale 256 Levels
• Multiple Beam forming Technology (Enhance Frame Rate, Improve Image Resolution)
• 240mm Max Scanning Depth (depending on the probe type)
• 2.5MHz – 11 MHz Probe Frequency (depending on the probe type)
• Archives Management – Patient information management, Patient images record, Patient exam report.
• Power Supply – AC 240V-100V, 50Hz-60Hz
• A broad range of transducers available
• Software packages, General measurement, OB, Obstetrics, GYN, Urology, Abdomen, Cardiac B/M mode, Vascular, Small parts, Orthopedic, Pediatrics.

• Standard Configuration
• Main Unit
• 3 x USB ports
• 1 x Probe connector
• C3-A convex probe included
• VGA Port
• Video Port
• LAN Port

Optional

• 2 Probe connectors
• Built in Battery
• DICOM 3.0
• Anti-Water keyboard cover
• Carry Bag
• Support PC Printer
