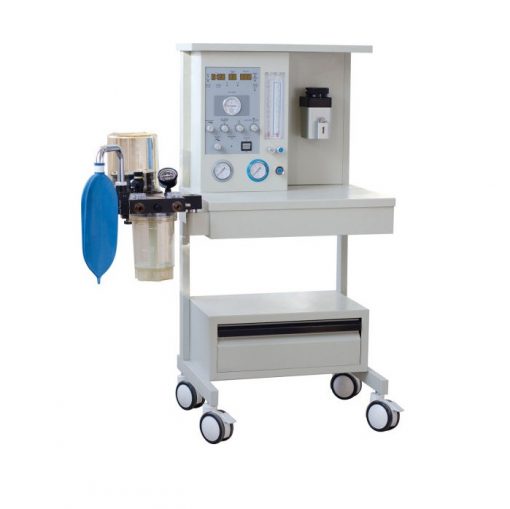

Anesthetic Machine- 01 Standard Model

Name: Anesthetic Machine- 01 Standard Model
SKU: 39738
Availability: InStock

R88,479.00

1 in stock

Specification

Model	JINLING-01 (Standard Model)
Display	LED
Flowmeter Range	O₂: 0.1-10L/min
	N₂O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
	Display range: 0-2000ml
Respiratory Rate	4-40bpm
Inspiratory/Expiratory (I:E) Ratio	1:1.5-1:3.0
Inspiratory Pressure Trigger	.-10-10cmH₂O
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Double PA-80 type slots

Feature

Operating Modes	Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator	Built-in high visibility, wide angle LED alphanumeric data display
Respiratory circuit	Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Flowmeter	Two tube, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Power Failure Support Functions	Automatically converts to backup power mode during AC power outages
Equipment	1. Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor 2. Infrared turbine flow sensor; precisely measures gas flows, stable and reliable 3. Advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Alarms	Audible and/or visual alarm, airway pressure, power failure, oxygen failure and other alarms
Vaporizer	Imported tank components assembled locally; Enfluran, Isofluran and Sevofluran (Halothan optional). Also possesses self-compensating functionality
Optional	Multi-parameter Patient Model
