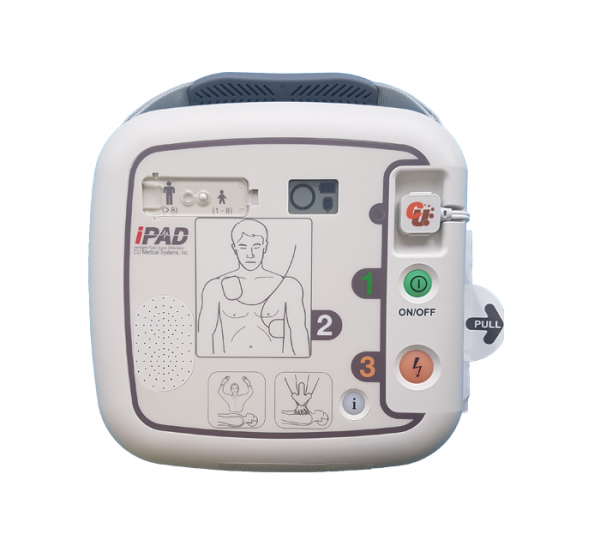

AED Defibrilator I-PAD Cusp1 (Public Access)

The i-PAD CU-SP1 is an automated external defibrillator (also known as an AED or PAD). The i-PAD CU-SP1 is designed for minimally trained individuals. It provides simple and direct voice prompts and instructions for straightforward rescue operation. It is lightweight and battery powered for maximum portability.
The AED Defibrilator images shown are for illustration purposes only and may not be an exact representation of the product.
• DEFIBRILLATOR: {‘Standard Package’: ‘Defibrillator, Pads, Battery, Manual’, ‘Output Energy’: ‘Adult-150Joules / Pediatric-50Joules (Common usage)’, ‘Charging time’: ‘Less than 8 seconds’, ‘Charging time after CPR finished’: ‘At least 8 seconds’}
• USER INTERFACE: {‘User support’: ‘Detailed voice prompts and flashing Indicators’, ‘CPR guidance’: ‘Voice prompts for how to perform CPR for Adult and child patient’, ‘Controls’: ‘On/Off button, I button, Shock button’, ‘Indicator’: ‘LCD display, (Device status, Battery status, Pads status)’, ‘Sensing’: ‘Pads expiring date, Pads connection status’, ‘CPR Monitoring’: ‘Yes’, ‘Automatic Volume adjusting’: ‘Yes’}
• ENVIRONMENT: {‘Sealing’: ‘Water-jet proof IPX5 per IEC60529 (IP55) Dust protected IP5X per IEC60529’, ‘Temperature’: ‘Operation/standby (0 – 40 )’, ‘Vibration’: ‘Meets MILSTD 810F’}
• DATA RECORDING AND TRANSMISSION: {‘IrDA port’: ‘wireless transmission of event data to PC, SD Card (OPTIONAL)’, ‘Internal Memory (Nand-flash)’: ‘ECG, Event’, ‘Storage capacity’: ‘Multi recording 5 events / Max 3 hours’, ‘Data review PC Program’: ‘CU-EX1’}
• PATIENT ANALYSIS SYSTEM: {‘Patient Analysis’: ‘Shockable Rhythms – Ventricular Fibrillation, Ventricular Tachycardia’, ‘Sensitivity/Specificity’: ‘Meets AAMI DF80 Guideline 6. Battery’}
• BATTERY: {‘Standard’: {‘Type’: ‘DC 12 Volt 2.8 Ah, Lithium manganese dioxide’, ‘Capacity’: ‘Minimum 100shocks (150J )’}, ‘High Capacity’: {‘Type’: ‘DC 12Volt 4.2Ah, Lithium manganese dioxide’, ‘Capacity’: ‘Minimum 200shocks (150J )’, ‘Lifespan’: ‘5 years (High capacity battery) (With the condition of the temperature of operation/ standby, standby mode after the first initial check)’}}
• PADS: {‘Common usage for adult and child’: ‘Yes’, ‘Expiring date’: ’30 months (from the date of manufacturing)’}
The AED Defibrilator iPAD CU-SP1 listens to the ambient noise, and automatically adjusts the volume of its prompts to make them clear and easily heard over the background noise. When the correct volume has been reached the AED Defibrilator iPAD CU-SP1 keeps the prompts at this level.

• Easy and Simple Operation
• Efficient and effective e-cube Biphasic technology (BTE type)
• Lightweight and compact
• Pre-connected pads (one pair of pads for adults and children)
• Easy communication with CU-EX1 software using IrDA or SD card (multi-event recording) -OPTIONAL
• Pads usage indication (Check and indicate the expiring date)
• Adjust volume automatically depending on the circumstances.
• Perfect for public facilities
